Product Details
Place of Origin: China
Brand Name: ENNENG
Certification: CE,UL
Model Number: PMM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: seaworthy packing
Delivery Time: 15-120 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year
Name: |
Variable Speed Permanent Magnet Motor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Power Range: |
5.5-3000kw |
Installation: |
IMB3 IMB5 IMB35 |
Phase: |
3 Phase |
Poles: |
2,4,6,8,10 |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |
Name: |
Variable Speed Permanent Magnet Motor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Power Range: |
5.5-3000kw |
Installation: |
IMB3 IMB5 IMB35 |
Phase: |
3 Phase |
Poles: |
2,4,6,8,10 |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |

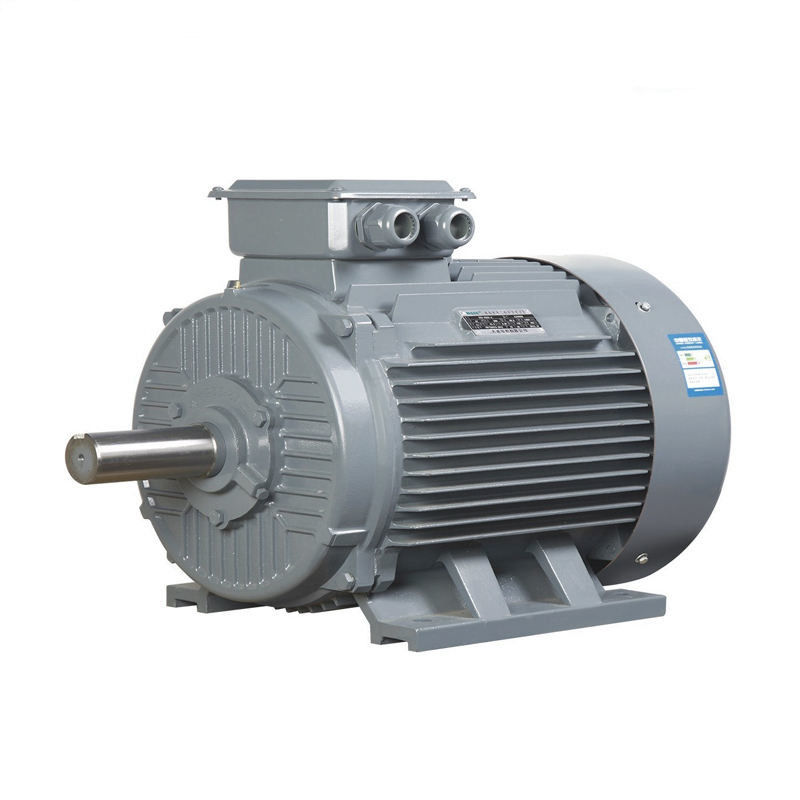

Widely Used 3-Phase Variable Speed Permanent Magnet Ac Motor
What Is The Permanent Magnet Synchronous Motor?
The PERMANENT MAGNET SYNCHRONOUS MOTOR is mainly composed of the stator, rotor, chassis, front-rear cover, bearings, etc. The structure of the stator is basically the same as that of ordinary asynchronous motors, and the main difference between the permanent magnet synchronous motor and other kinds of motors is its rotor.
The permanent magnet material with pre-magnetized (magnetic charged) magnetic on the surface or inside the permanent magnet of the motor, provides the necessary air gap magnetic field for the motor. This rotor structure can effectively reduce the motor volume, reduce loss and improve efficiency.
Analysis of the principle of the technical advantages of permanent magnet motor
The principle of a permanent magnet synchronous motor is as follows: In the motor's stator winding into the three-phase current, after the pass-in current, it will form a rotating magnetic field for the motor's stator winding. Because the rotor is installed with the permanent magnet, the permanent magnet's magnetic pole is fixed, according to the principle of magnetic poles of the same phase attracting different repulsion, the rotating magnetic field generated in the stator will drive the rotor to rotate, The rotation speed of the rotor is equal to the speed of the rotating pole produced in the stator.
Due to the use of permanent magnets to provide magnetic fields, the rotor process is mature, reliable, and flexible in size, and the design capacity can be as small as tens of watts, up to megawatts. At the same time, by increasing or decreasing the number of pairs of rotor permanent magnets, it is easier to change the number of poles of the motor, which makes the speed range of permanent magnet synchronous motors wider. With multi-pole permanent magnet rotors, the rated speed can be as low as a single digit, which is difficult to achieve by ordinary asynchronous motors.
Especially in the low-speed high-power application environment, the permanent magnet synchronous motor can be directly driven by a multi-pole design at low speed, compared with an ordinary motor plus reducer, the advantages of a permanent magnet synchronous motor can be highlighted.
Benefits of PMSM motors:
High efficiency
This is particularly true at lower speeds. The permanent magnet motor does not require current to be supplied to its rotor to generate the rotor field, therefore eliminating the rotor losses almost completely. When compared to induction or reluctance motors it also requires lower currents on the stator and has a bigger power factor, leading to smaller current ratings on the controller, and increasing the overall drive system efficiency.
Driving lower speeds at higher efficiency than an induction motor might delete the requirement of a speed-reduction transmission, taking the complexity out of the mechanical arrangement.
Constant torque
This type of motor can generate constant torque and maintain full torque at low speeds.
Size
The smaller size, lighter weight, and less coil provide a higher power density.
Cost-effective
With the absence of brushes, there are reduced maintenance costs.
Minimal heat
In PMSM the heat is generated on the stator coils and there are no brushes and only minimum heat generated on the rotor, facilitating the cooling of the motor. As they run cooler than induction motors, the motor's reliability and lifespan are increased.
Speed range
This type of motor can have a wide speed range with the use of Field Weakening and can adopt the maximum torque/current (MTPA) control strategy during constant torque operation.
Permanent magnet AC (PMAC) motors have a wide range of applications including:
Industrial Machinery: PMAC motors are used in a variety of industrial machinery applications, such as pumps, compressors, fans, and machine tools. They offer high efficiency, high power density, and precise control, making them ideal for these applications.
Robotics: PMAC motors are used in robotics and automation applications, where they offer high torque density, precise control, and high efficiency. They are often used in robotic arms, grippers, and other motion control systems.
HVAC Systems: PMAC motors are used in heating, ventilation, and air conditioning (HVAC) systems, where they offer high efficiency, precise control, and low noise levels. They are often used in fans and pumps in these systems.
Permanent magnet synchronous motors with internal magnets: Maximum energy efficiency
The permanent magnet synchronous motor with internal magnets (IPMSM) is the ideal motor for traction applications where the maximum torque does not occur at maximum speed. This type of motor is used in applications that require high dynamics and overload capacity. And it is also the perfect choice if you want to operate fans or pumps in the IE4 and IE5 range. The high purchase costs are usually recouped through energy savings over the run time, provided that you operate it with the right variable frequency drive.
Our motor-mounted variable frequency drives use an integrated control strategy based on MTPA (Maximum Torque per Ampere). This allows you to operate your permanent magnet synchronous motors with maximum energy efficiency. The overload of 200 %, the excellent starting torque and the extended speed control range also allow you to fully exploit the motor rating. For fast recovery of costs and the most efficient control processes.
Permanent magnet synchronous motors with external magnets for classic servo applications
Permanent magnet synchronous motors with external magnets (SPMSM) are ideal motors when you need high overloads and rapid acceleration, for example in classic servo applications. The elongated design also results in low mass inertia and can be optimally installed. However, one disadvantage of the system consisting of SPMSM and variable frequency drive is the costs associated with it, as expensive plug technology and high-quality encoders are often used.
Renewable Energy Systems: PMAC motors are used in renewable energy systems, such as wind turbines and solar trackers, where they offer high efficiency, high power density, and precise control. They are often used in the generators and tracking systems in these systems.
Medical Equipment: PMAC motors are used in medical equipment, such as MRI machines, where they offer high torque density, precise control, and low noise levels. They are often used in the motors that drive the moving parts in these machines.
