Product Details
Place of Origin: China
Brand Name: ENNENG
Certification: CE,UL
Model Number: PMM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: seaworthy packing
Delivery Time: 15-120 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year
Name: |
PM Electric Motor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Insulation Class: |
F(H) |
Protection Grade: |
IP54(IP23 Customizable) |
Energy Efficiency Standards: |
IE5 |
Control Mode: |
Variable Frequency Vector Control |
Temperature: |
-15～+40℃ |
Poles: |
6 |
Application: |
Air Compressor |
Name: |
PM Electric Motor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Insulation Class: |
F(H) |
Protection Grade: |
IP54(IP23 Customizable) |
Energy Efficiency Standards: |
IE5 |
Control Mode: |
Variable Frequency Vector Control |
Temperature: |
-15～+40℃ |
Poles: |
6 |
Application: |
Air Compressor |

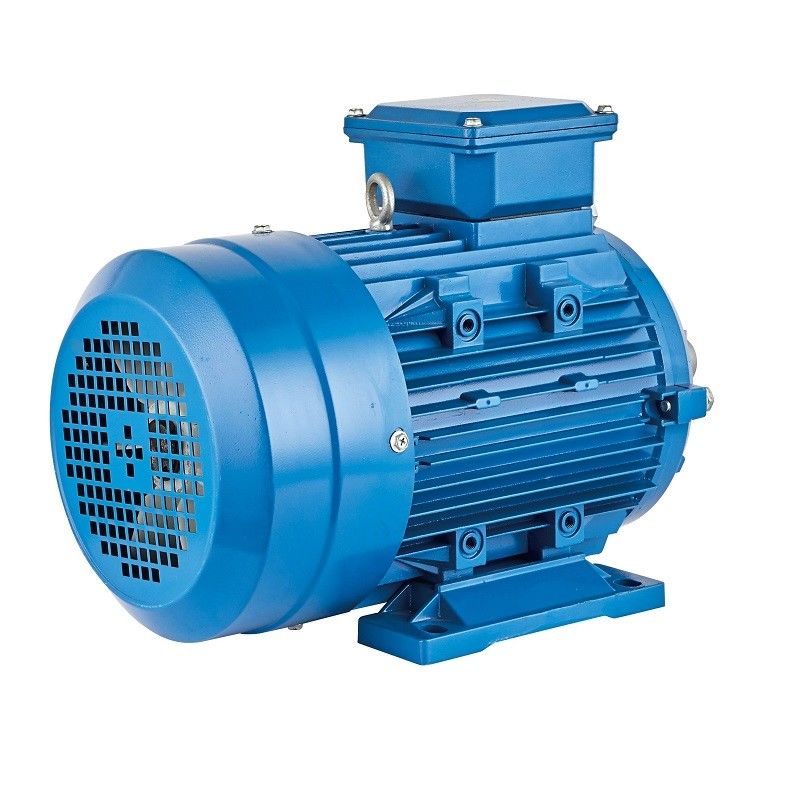

130kw 160kw Variable Speed Permanent Magnet Synchronous Motor For Air Compressor
What Is The Permanent Magnet Synchronous Motor?
The PERMANENT MAGNET SYNCHRONOUS MOTOR is mainly composed of the stator, rotor, chassis, front-rear cover, bearings, etc. The structure of the stator is basically the same as that of ordinary asynchronous motors, and the main difference between the permanent magnet synchronous motor and other kinds of motors is its rotor.
The permanent magnet material with pre-magnetized (magnetic charged) magnetic on the surface or inside the permanent magnet of the motor, provides the necessary air gap magnetic field for the motor. This rotor structure can effectively reduce the motor volume, reduce loss and improve efficiency.
Analysis of the principle of the technical advantages of permanent magnet motor
The principle of a permanent magnet synchronous motor is as follows: In the motor's stator winding into the three-phase current, after the pass-in current, it will form a rotating magnetic field for the motor's stator winding. Because the rotor is installed with the permanent magnet, the permanent magnet's magnetic pole is fixed, according to the principle of magnetic poles of the same phase attracting different repulsion, the rotating magnetic field generated in the stator will drive the rotor to rotate, The rotation speed of the rotor is equal to the speed of the rotating pole produced in the stator.
Due to the use of permanent magnets to provide magnetic fields, the rotor process is mature, reliable, and flexible in size, and the design capacity can be as small as tens of watts, up to megawatts. At the same time, by increasing or decreasing the number of pairs of rotor permanent magnets, it is easier to change the number of poles of the motor, which makes the speed range of permanent magnet synchronous motors wider. With multi-pole permanent magnet rotors, the rated speed can be as low as a single digit, which is difficult to achieve by ordinary asynchronous motors.
Especially in the low-speed high-power application environment, the permanent magnet synchronous motor can be directly driven by a multi-pole design at low speed, compared with an ordinary motor plus reducer, the advantages of a permanent magnet synchronous motor can be highlighted.
Why choose permanent magnet ac motors?
Permanent magnet AC (PMAC) motors offer several advantages over other types of motors, including:
High Efficiency: PMAC motors are highly efficient due to the absence of rotor copper losses and reduced winding losses. They can achieve efficiencies of up to 97%, resulting in significant energy savings.
High Power Density: PMAC motors have a higher power density compared to other motor types, which means they can produce more power per unit of size and weight. This makes them ideal for applications where space is limited.
High Torque Density: PMAC motors have a high torque density, which means they can produce more torque per unit of size and weight. This makes them ideal for applications where high torque is required.
Reduced Maintenance: Since PMAC motors have no brushes, they require less maintenance and have a longer lifespan than other motor types.
Improved Control: PMAC motors have better speed and torque control compared to other motor types, making them ideal for applications where precise control is required.
EMF and Torque Equation
In a synchronous machine, the average EMF induced per phase is called dynamic induces EMF in a synchronous motor, the flux cut by each conductor per revolution is Pϕ Weber
Then the time taken to complete one revolution is 60/N sec
The average EMF induced per conductor can be calculated by using
( PϕN / 60 ) x Zph = ( PϕN / 60 ) x 2Tph
Where Tph = Zph / 2
Therefore, the average EMF per phase is,
= 4 x ϕ x Tph x PN/120 = 4ϕfTph
Where Tph = no. Of turns connected in series per phase
ϕ = flux/pole in Weber
P= no. Of poles
F= frequency in Hz
Zph= no. Of conductors connected in series per phase. = Zph/3
The EMF equation depends on the coils and the conductors on the stator. For this motor, the distribution factor Kd and pitch factor Kp are also considered.
Hence, E = 4 x ϕ x f x Tph xKd x Kp
The torque equation of a permanent magnet synchronous motor is given as,
T = (3 x Eph x Iph x sinβ) / ωm
Surface-mounted PMSM
In this construction, the magnet is mounted on the surface of the rotor. It is suited for high-speed applications, as it is not robust. It provides a uniform air gap because the permeability of the permanent magnet and the air gap is the same. No reluctance torque, high dynamic performance, and suitable for high-speed devices like robotics and tool drives.
Buried PMSM or Interior PMSM
In this type of construction, the permanent magnet is embedded into the rotor as shown in the figure below. It is suitable for high-speed applications and gets robust. Reluctance torque is due to the saliency of the motor.
