Product Details
Place of Origin: China
Brand Name: ENNENG
Certification: CE,UL
Model Number: PMM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: seaworthy packing
Delivery Time: 15-120 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year
Name: |

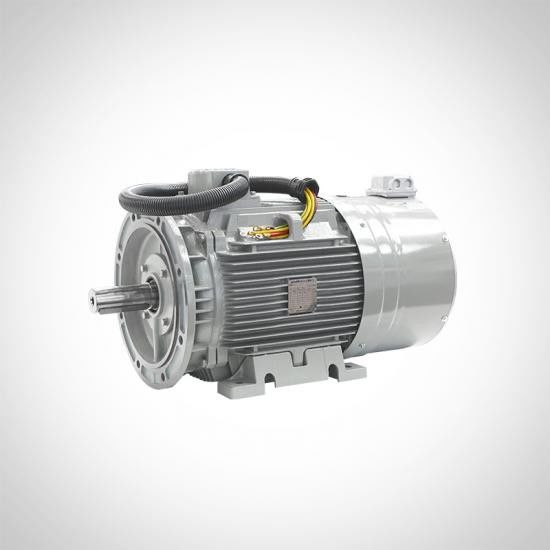

Direct Drive PM Motor For Rotary Screw Air Compressor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Installation: |
IMB3 IMB5 IMB35 |
Phase: |
3 Phase |
Poles: |
2,4,6,8,10 |
Power Range: |
5.5-3000kw |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |
Frame Size: |
From H112 To H450 |
Control Mode: |
Invertor Open Loop Vector Control |
Name: |
Direct Drive PM Motor For Rotary Screw Air Compressor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Installation: |
IMB3 IMB5 IMB35 |
Phase: |
3 Phase |
Poles: |
2,4,6,8,10 |
Power Range: |
5.5-3000kw |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |
Frame Size: |
From H112 To H450 |
Control Mode: |
Invertor Open Loop Vector Control |
Product Parameters:
| Model | Rated power(KW) | Rated voltage(V) | Rated current(A) | Rated speed(r/min) | Efficiency(%) | Power factor | Rated frequency(Hz) | Service factor |
| TYC7.5-3000-Z132S6 | 7.5 | 380 | 12.8 | 3000 | 93.0 | 0.96 | 150 | 1.2 |
| TYC11-3000-Z132S6 | 11 | 18.5 | 94.0 | |||||
| TYC15-3000-Z132S6 | 15 | 25.2 | 94.3 | |||||
| TYC18.5-3000-Z160M6 | 18.5 | 31.0 | 94.4 | |||||
| TYC22-3000-Z160M6 | 22 | 36.8 | 94.6 | |||||
| TYC30-3000-Z160L6 | 30 | 50.0 | 95.0 | |||||
| TYC37-3000-Z160L6 | 37 | 61.3 | 95.5 | |||||
| TYC45-3000-Z180M8 | 45 | 74.5 | 95.6 | 200 | ||||
| TYC55-3000-Z180M8 | 55 | 90.9 | 95.8 | |||||
| TYC75-3000-Z225M8 | 75 | 123 | 96.2 | |||||
| TYC90-3000-Z225M8 | 90 | 148 | 96.5 | |||||
| TYC110-3000-Z225L8 | 110 | 180 | 96.8 | |||||
| TYC132-3000-Z225L8 | 132 | 215 | 97.0 | |||||
| TYC160-3000-Z225L8 | 160 | 261 | 97.0 | |||||
| TYC185-3000-Z250M8 | 185 | 301 | 97.0 | |||||
| TYC-200-3000-Z250M8 | 200 | 326 | 97.0 | |||||
| TYC-200-3000-Z250L8 | 220 | 359 | 97.0 | |||||
| TYC-200-3000-Z250L8 | 250 | 408 | 97.0 |
| Frame size | 132 | 160 | 180 | 200 | 225 | 250M/L | 280M/L | ||||
| Mechanical Properties | |||||||||||
| Frame/End shield /Terminal boxes |
Material | Cast Iron | |||||||||
| Mounting | B3/B35 | ||||||||||
| IP Grade | IP23 | ||||||||||
| Cooling Method | IC01(ODP) | ||||||||||
| Earth | Inside the wiring cover and the machine base | ||||||||||
| Bearing | Dust cover/clearance | ZZ/C3 | /C3 | ||||||||
| Bearing fix | DE fix, NDE with Wave spring washer | ||||||||||
| DE fix bearings |
3000rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6314/6318 | 6314/6318 | |||
| 1500rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6318/6318 | 6318/6318 | ||||
| NDE fix bearings |
3000rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6314/6316 | 6314/6316 | |||
| 1500rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6316/6316 | 6316/6316 | ||||
Lubrication |
Material | ESSO UNIREX N2 | |||||||||
| Oil pipe | / | End shield oiling device | pipe | ||||||||
| plug | With rubber blind cover for transportation and storage | ||||||||||
| Shaft | Material | Steel45# | |||||||||
| B type | |||||||||||
| vibration limit (mm/s) |
1.6 | 2.2 | |||||||||
| Balance | 1/2 key G2.5 grade | ||||||||||
Nameplate |
Material |
Aluminum alloy | |||||||||
| Electrical performance | |||||||||||
| Voltage | 380/400V(or440/460V)three terminals | ||||||||||
Winding |
Material | high purity copper | |||||||||
| Dipping method |
VPI and drying | ||||||||||
Insulation grade |
155(F) | ||||||||||
| Service Factor | 1.0/1.2/1.3 | ||||||||||
| stator and rotor lamination |
silicon steel | ||||||||||
| permanent magnet | NdFeB | ||||||||||
Product Description:
The TYC series ultra-ultra-high-efficiency rare earth permanent magnet synchronous motor that exceeds the IE4 efficiency standard is the latest special motor for compressors developed by our company. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates without encoder vector control, and has a magnetic steel structure. , has the advantages of high efficiency, reliable operation and good installation interchangeability.
| B3/B35 size | Universal size | ||||||||||||||
| Frame size | A | AA | AB | B | BB | HA | H | K | C | AC | AD | BS | KK | L | |
| 3000rpm | 1500rpm | ||||||||||||||
| 132S | 216 | 63 | 270 | 140 | 190 | 20 | 132 | 12 | 89 | 275 | 213 | 0 | M33 | 508 | |
| 132M | 178 | 230 | 546 | ||||||||||||
| 160M | 254 | 73 | 320 | 210 | 274 | 20 | 160 | 15 | 108 | 330 | 260 | 65 | M33 | 659 | |
| 160L | 254 | 318 | 87 | 714 | |||||||||||
| 180M | 279 | 73 | 355 | 241 | 315 | 22 | 180 | 15 | 121 | 380 | 280 | 67 | M48 | 738 | |
| 180L | 279 | 355 | 86 | 778 | |||||||||||
| 200L | 318 | 73 | 395 | 305 | 375 | 25 | 200 | 19 | 133 | 400 | 305 | 86 | M48 | 820 | |
| 225S | 356 | 83 | 435 | 286 | 375 | 28 | 225 | 19 | 149 | 470 | 335 | 87 | M48 | 820 | |
| 225M | 311 | 400 | 100 | 845 | |||||||||||
| 280S | 457 | 93 | 550 | 368 | 490 | 35 | 280 | 24 | 190 | 547 | 400 | 158 | M64 | 985 | |
| 280M | 419 | 540 | 184 | 1035 | |||||||||||
| 315S | 508 | 120 | 635 | 406 | 575 | 45 | 315 | 28 | 216 | 645 | 530 | 162 | M75 | 1185 | 1215 |
| 315M | 457 | 685 | 188 | 1295 | 1325 | ||||||||||
| Universal size(轴伸) | B35/B5/V1 size | ||||||||||||||||
| Frame size | D | E/DE | F | G | GD | N | M | P | S | T | R | LA | |||||
| 3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
||||||||
| 132S | 38k6 | 80/70 | 10 | 33 | 8 | 230j6 | 265 | 300 | 15 | 4 | 0 | 14 | |||||
| 132M | |||||||||||||||||
| 160M | 42k6 | 110/80 | 12 | 37 | 8 | 250j6 | 300 | 350 | 19 | 5 | 0 | 15 | |||||
| 160L | |||||||||||||||||
| 180M | 48k6 | 110/80 | 14 | 42.5 | 9 | 250j6 | 300 | 350 | 19 | 5 | 0 | 15 | |||||
| 180L | |||||||||||||||||
| 200L | 55m6 | 110/80 | 16 | 49 | 10 | 300j6 | 350 | 400 | 19 | 5 | 0 | 17 | |||||
| 225S | 60m6 | 140/100 | 16 | 18 | 49 | 53 | 10 | 11 | 350j6 | 400 | 450 | 19 | 5 | 0 | 20 | ||
| 225M | |||||||||||||||||
| 280S | 65m6 | 75m6 | 140/100 | 18 | 20 | 58 | 67.5 | 11 | 12 | 450j6 | 500 | 550 | 19 | 5 | 0 | 22 | |
| 280M | |||||||||||||||||
| 315S | 65m6 | 80m6 | 140/100 | 170/140 | 18 | 22 | 58 | 71 | 11 | 14 | 550 | 600 | 660 | 24 | 6 | 0 | 25 |
| 315M | |||||||||||||||||
