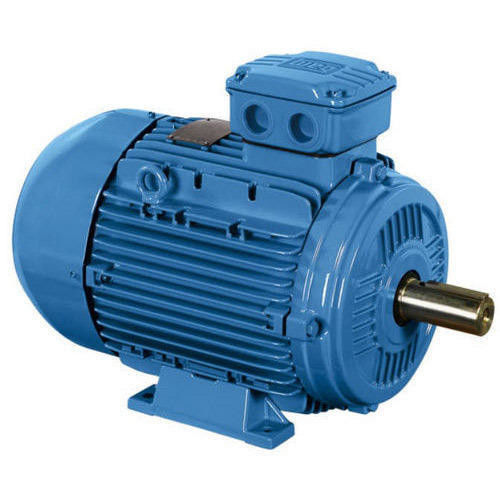

75kw 90kw Permanent Magnet Motors For Compressors And Conveyors

The characteristics and advantages of permanent magnet motors

Motor from the source of excitation can be divided into two categories: permanent magnet motor, and electric excitation motor. A permanent magnet motor is an electric motor that produces an excitation magnetic field from a permanent magnet. The most widely used three-phase asynchronous motors in industry and civil use, such as Y-Series, Y2-Series, YE2-Series, YX3 Series, Series YB, series YB2 series, etc. all belong to electric excitation motors. ENNENG Motor products are ultra-efficient permanent magnet synchronous motors.

Compared with traditional electric excitation motors, permanent magnet motors, especially rare earth permanent magnet motors, have the advantages of simple structure, reliable operation, small size, lightweight, small loss and high efficiency, and flexible and diverse shape and size of the motor. The application is extremely wide, covering almost all areas of aerospace, national defense, industrial and agricultural production, and daily life.

The development trend of rare earth permanent magnet motors

Rare earth permanent magnet motors are developing towards high power (high speed, high torque), high functionality and miniaturization, and are constantly expanding new motor varieties and application fields, and the application prospects are very optimistic. In order to meet the needs, the design and manufacturing process of rare earth permanent magnet motors still need to be continuously innovated, the electromagnetic structure will be more complex, the calculation structure will be more accurate, and the manufacturing process will be more advanced and applicable.

Application of rare earth permanent magnet motor

Pumps and Ventilation Systems
ENNENG PMSM is widely used in pumps and ventilation systems that operate under variable load conditions, benefitting from the speed variation capability of these motors which ensures their use at the best duty point. The size and weight reduction of the PMSM Super Premium efficient motor also presents an important advantage in ventilation systems, where their design permits more compact installations to be achieved.

Extruders, Looms, and Wiredrawing Machines
By working together with the frequency inverter, the ENNENG Permanent Magnet motor offers precise speed control. Therefore, it is perfectly suited to drive continuous processing machines such as extruders, looms, and wired drawing machines. They offer precise constant torque control even at low speeds, fully satisfying the requirements of these demanding applications.

Compressors
ENNENG permanent magnet motors are particularly suited for compressor applications, due to their constructional features, flexibility, and efficiency. In the case of the Super Premium efficient motor design, their reduced size, and ability on conveyor applications, ENNENG Permanent Magnet motors stand out due to their capacity to offer high starting torques. Their low operating temperatures allow more starts per hour without oversizing of the motor or use of forced ventilation

Paper Coil Winders
ENNENG PMSM is also highly recommended for applications within the paper and cellulose industry, for example, paper coil winders. Variable speed, precise control, and high and constant torques are essential requirements for these applications, Therefore the use of PMSM, together with the drive inverter, offers the perfect solution to meet these demands.

Injection molding machines
These machines use maximum consumption of energy, one having ENNENG PMSM machines one can increase the production with increased rpm with consumption of less energy.

The rotor magnetic circuit structure of the permanent magnet synchronous motor is different, so the operation characteristics and control system of the motor are also different. According to the different positions of the permanent magnets on the rotor, permanent magnet synchronous motors can be mainly divided into the surface type and interior type. In the surface-type permanent magnet synchronous motor, the permanent magnets are usually tile-shaped and located on the outer surface of the rotor core. The important feature of this motor is that the main inductances of the straight and orthogonal axes are equal; the interior permanent magnet is located inside the rotor, and there is a pole piece made of ferromagnetic material between the outer surface of the permanent magnet and the inner circle of the stator core, which can protect the permanent magnet. The important feature of this permanent magnet motor is that the main inductances of the straight and quadrature axes are not equal. Therefore, the performance of these two motors is different.

I. Overview

The motor is excited by rare earth neodymium iron boron permanent magnet materials, and is supplied with permanent magnet special frequency converter. It has the characteristics of large starting torque, wide speed range, compact structure, small size, light weight, low noise, high power factor, and high efficiency. It is an ideal power choice for high-efficiency and energy-saving air compressors. The technical requirements and parameters are as follows:

1. The motor can operate normally under the following conditions:

1.1 The ambient temperature does not exceed 40℃;

1.2 Relative humidity ≤90%;

1.3 The altitude does not exceed 1000m.

2. The rated voltage of the motor is 380V, also according to user requirements.

3. The reference work system of the motor: S1.

4. Insulation grade: F grade.

5. Protection level: IP55.

6. Motor structure and installation type: B3, B35.

7. The motor outlet is located on the top of the base, or it can be located on the right or left of the base according to user requirements.

8. Motor service factor: 1.15, 1.2 (or as per technical agreement).

II. Inspection

1. Before use, please carefully check the appearance of the motor for damage during transportation, and check whether the nameplate parameters (power, voltage, speed, etc.) are consistent with the order.

2. Check whether the fasteners of the motor are loose.

3. Turn the motor shaft by hand to see if there is any jamming.

III. Operation and use

1. Before the motor is energized, confirm the rotation direction of the motor, and check whether the mechanical installation and electrical connection are safe and reliable.

2. If abnormal noise or vibration is found in the motor during operation, please stop the operation immediately and cut off the power supply. Check the motor and compressor, and put it into operation again after troubleshooting.

3. If the temperature rise of the motor is found to be abnormal during operation, please stop the motor and cut off the power immediately, check the motor and the compressor, and then put it into use again after troubleshooting.

IV. Maintenance

1. Please carry out regular maintenance of the bearing strictly in accordance with the bearing lubrication indication plate. The motor should be refilled with grease immediately after running for about 2000 hours, and the grease brand must be carefully identified before refilling. When the bearing is found to be overheated or the grease is degraded during operation, it should be replaced in time. The old grease should be removed when replacing, and the bearing and the inner and outer cover oil chambers of the bearing should be cleaned with gasoline, and then clean grease of the same brand should be added. Motor with a speed of 3000rpm and above, the amount of refueling: the bearing cavity is filled, the amount of grease added to the oil chamber of the bearing inner cover accounts for 1/2 of the oil chamber, the remaining speed motor refueling amount: the bearing inner cavity is filled, and the bearing inner cover oil chamber is filled The amount of grease occupies 2/3 of the oil chamber.

2. When replacing the bearing, a special bearing disassembly tool must be used to pull the bearing from the motor shaft, and the disassembly force must not be directly applied to the motor shaft. When installing a new bearing, the hot sleeve method should be used to install the bearing. After the bearing is heated to 90°C, the bearing sleeve should be placed on the bearing position on the shaft.
