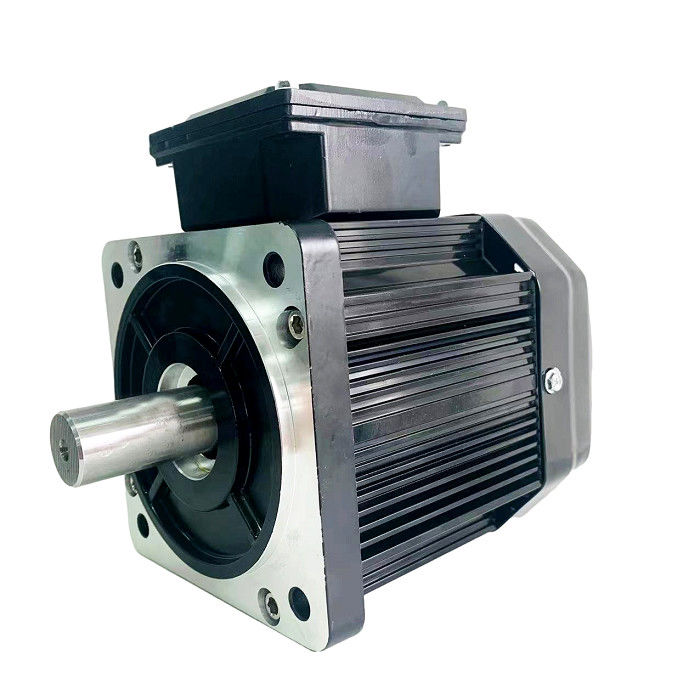

6KV 10KV Rare Earth Magnets Motor , Eco Friendly Three Phase PMSM Machine

Product Details

Place of Origin: China

Brand Name: ENNENG

Certification: CE,UL

Model Number: PMM

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 500-5000/set

Packaging Details: seaworthy packing

Delivery Time: 15-120 days

Payment Terms: L/C, T/T

Supply Ability: 20000 sets/year

Get Best Price
Highlight:

6KV Rare Earth Magnets Motor

,

10KV Rare Earth Magnets Motor

,

Three Phase PMSM Machine

Name:
Rare Earth Magnets Motor
Current:
AC
Material:
Rare Earth NdFeB
Power Range:
15-3000kw
Installation:
IMB3 IMB5 IMB35
Poles:
2,4,6,8,10
Phase:
3 Phase
Voltage:
380V, 660V, 1140V, 3300V, 6KV, 10KV
Name:
Rare Earth Magnets Motor
Current:
AC
Material:
Rare Earth NdFeB
Power Range:
15-3000kw
Installation:
IMB3 IMB5 IMB35
Poles:
2,4,6,8,10
Phase:
3 Phase
Voltage:
380V, 660V, 1140V, 3300V, 6KV, 10KV
6KV 10KV Rare Earth Magnets Motor , Eco Friendly Three Phase PMSM Machine

Eco Friendly Neodymium Magnet Three-Phase Permanent Magnet Motor



Energy Efficiency Standards
comply with GB30253-1 grade
Work Mode
S1
Altitude
below 1000m
Environmental Temperature
-15~+40℃
Installation Dimensions
comply with IEC standard
Control Mode
variable frequency vector control
Power Range
15 〜3000kw
Install Type
IMB3 IMB5 IMB35
Cooling Way
IC411 or IC416
Rated Efficiency
50,75,125,150Hz(customized as per requirement)
Insulation Class
F(H)
Optional Parts
Encoder, spiral transformer, PTC, PT100
Protection Grade
IP54(IP23 customizable)
Wiring Type
junction box (aviation plug can be customized as per requirement)
Installation
IMB3 IMB5 IMB35
Rated Voltage
380V±10%,660V±10%

Required Environment
below 1000m altitude
temperature -15〜45°C
relative humidity below 90%



6KV 10KV Rare Earth Magnets Motor , Eco Friendly Three Phase PMSM Machine 0



What Is The Permanent Magnet Synchronous Motor?



The PERMANENT MAGNET SYNCHRONOUS MOTOR is mainly composed of the stator, rotor, chassis, front-rear cover, bearings, etc. The structure of the stator is basically the same as that of ordinary asynchronous motors, and the main difference between the permanent magnet synchronous motor and other kinds of motors is its rotor.



The permanent magnet material with pre-magnetized (magnetic charged) magnetic on the surface or inside the permanent magnet of the motor, provides the necessary air gap magnetic field for the motor. This rotor structure can effectively reduce the motor volume, reduce loss and improve efficiency.



Detailed pictures
6KV 10KV Rare Earth Magnets Motor , Eco Friendly Three Phase PMSM Machine 1


Why choose permanent magnet ac motors?



Permanent magnet AC (PMAC) motors offer several advantages over other types of motors, including:



High Efficiency: PMAC motors are highly efficient due to the absence of rotor copper losses and reduced winding losses. They can achieve efficiencies of up to 97%, resulting in significant energy savings.



High Power Density: PMAC motors have a higher power density compared to other motor types, which means they can produce more power per unit of size and weight. This makes them ideal for applications where space is limited.



High Torque Density: PMAC motors have a high torque density, which means they can produce more torque per unit of size and weight. This makes them ideal for applications where high torque is required.



Reduced Maintenance: Since PMAC motors have no brushes, they require less maintenance and have a longer lifespan than other motor types.



Improved Control: PMAC motors have better speed and torque control compared to other motor types, making them ideal for applications where precise control is required.



Environmentally Friendly: PMAC motors are more environmentally friendly than other motor types since they use rare earth metals, which are easier to recycle and produce less waste compared to other motor types.



Overall, the advantages of PMAC motors make them an excellent choice for a wide range of applications, including electric vehicles, industrial machinery, and renewable energy systems.





Permanent magnet AC (PMAC) motors have a wide range of applications including:



Industrial Machinery: PMAC motors are used in a variety of industrial machinery applications, such as pumps, compressors, fans, and machine tools. They offer high efficiency, high power density, and precise control, making them ideal for these applications.



Robotics: PMAC motors are used in robotics and automation applications, where they offer high torque density, precise control, and high efficiency. They are often used in robotic arms, grippers, and other motion control systems.



HVAC Systems: PMAC motors are used in heating, ventilation, and air conditioning (HVAC) systems, where they offer high efficiency, precise control, and low noise levels. They are often used in fans and pumps in these systems.



Renewable Energy Systems: PMAC motors are used in renewable energy systems, such as wind turbines and solar trackers, where they offer high efficiency, high power density, and precise control. They are often used in the generators and tracking systems in these systems.



Medical Equipment: PMAC motors are used in medical equipment, such as MRI machines, where they offer high torque density, precise control, and low noise levels. They are often used in the motors that drive the moving parts in these machines.

6KV 10KV Rare Earth Magnets Motor , Eco Friendly Three Phase PMSM Machine 2
