Product Details
Place of Origin: China
Brand Name: ENNENG
Certification: CE,UL
Model Number: PMM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: seaworthy packing
Delivery Time: 15-120 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year
Name: |
Permanent Magnet Brushless AC Motor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Power Range: |
5.5-3000kw |
Energy Efficiency Standards: |
Comply With GB30253-1 Grade |
Control Mode: |
Variable Frequency Vector Control |
Application: |
Petrochemical, Chemical Fiber, Textile, Machinery, Electronics, Glass, Rubber, Packaging, Printing, Paper Making, Printing And Dyeing, Metallurgy And Other Industries. |
Cooling: |
Air Cooling, Liquid Cooling,natural Cooling |
Color: |
Blue, Grey, Etc. |
Insulation Class: |
F(H) |
Name: |
Permanent Magnet Brushless AC Motor |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Power Range: |
5.5-3000kw |
Energy Efficiency Standards: |
Comply With GB30253-1 Grade |
Control Mode: |
Variable Frequency Vector Control |
Application: |
Petrochemical, Chemical Fiber, Textile, Machinery, Electronics, Glass, Rubber, Packaging, Printing, Paper Making, Printing And Dyeing, Metallurgy And Other Industries. |
Cooling: |
Air Cooling, Liquid Cooling,natural Cooling |
Color: |
Blue, Grey, Etc. |
Insulation Class: |
F(H) |

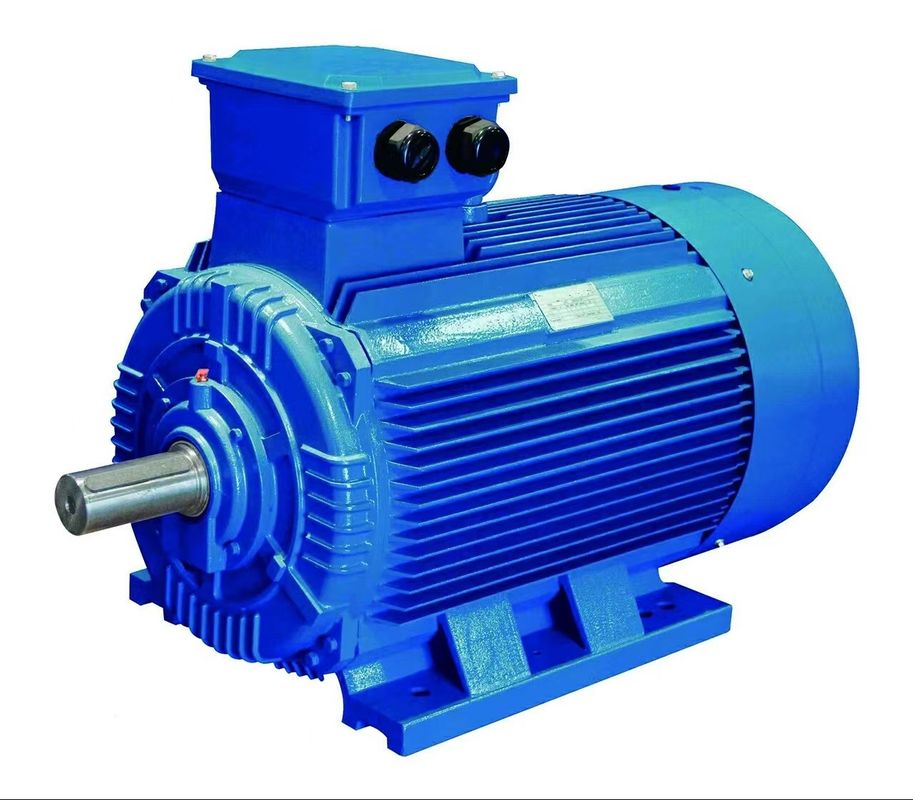

High Power Factor Rare Earth Brushless Permanent Magnet Motor
What Is The Permanent Magnet Synchronous Motor?
Permanent magnetic motors are used in a wide range of applications, and industries that benefit from them include: automotive, for use in window wipers, powered seats, central locking systems and more; industrial, in pumps, conveyors, extruders and other processing, manufacturing and assembly equipment; HVAC, in systems and equipment such as fans and blowers; and construction, for heavy-duty materials handling equipment such as cranes and hoists.
Permanent magnet motors are typically separated into two main types based on design and electrical flow: brushless DC motors and permanent magnet synchronous motors. While both types are types of synchronous motors, meaning that the rotor rotates at the same speed as the magnetic field, a brushless DC motor is unique in that it operates based on DC, while most synchronous motors operate on AC, and that it has an electronic commutation system instead of a mechanical one.
Permanent magnet synchronous motors, on the other hand, are run on AC as is typical and induction is not required for magnetic field production. Both are designed in a similar style, with the basic components of an enclosure, rotor, axle, wound armature and permanent magnet. Also referred to as a coil, the wound armature rotates while the magnetic field remains stationary.
The rotation results from the magnet's reaction when the electrical current flows through specific points of the motor. One major difference in design between the two types of motors is that brushless DC motors have a trapezoidal-shaped back electromotive force (EMF) while permanent magnet synchronous motors have a sinusoidal-shaped back EMF. Back EMF refers to the voltage that is induced in the wound armature when the motor is rotating.
Small And Lightweight
In special electromagnetic and structural design, the volume-to-weight ratio is reduced by 20%, the length of the whole machine is reduced by 10%, and the full rate of stator slots is increased to 90%.
Highly Integrated
The motor and the inverter are highly integrated, avoiding the external circuit connection between the motor and the inverter, and improving the reliability of the system products.
Energy Efficient
High-performance rare-earth permanent magnet material, special stator slot, and rotor structure make this motor efficient up to IE4 standard.
Custom Design
Customized design and manufacture, dedicated to special machines, reduce redundant functions and design margins and minimize costs.
Low Vibration And Noise
The motor is directly driven, the equipment noise and vibration are small, and the impact on the construction work environment is reduced.
Maintenance Free
No high-speed gear parts, no need to change gear lubricant regularly, and truly maintenance-free equipment.
What applications use PMSM motors?
Industries that use PMSM motors include Metallurgical, Ceramic, Rubber, Petroleum, Textiles, and many others. PMSM motors can be designed to operate at synchronous speed from a supply of constant voltage and frequency as well as Variable Speed Drive (VSD) applications. Widely used in electric vehicles (EVs) due to high efficiency and power and torque densities, they are generally a superior choice in high torque applications such as mixers, grinders, pumps, fans, blowers, conveyors, and industrial applications where traditionally induction motors are found.
Permanent magnet synchronous motors with internal magnets: Maximum energy efficiency
The permanent magnet synchronous motor with internal magnets (IPMSM) is the ideal motor for traction applications where the maximum torque does not occur at maximum speed. This type of motor is used in applications that require high dynamics and overload capacity. And it is also the perfect choice if you want to operate fans or pumps in the IE4 and IE5 range. The high purchase costs are usually recouped through energy savings over the run time, provided that you operate it with the right variable frequency drive.
Our motor-mounted variable frequency drives use an integrated control strategy based on MTPA (Maximum Torque per Ampere). This allows you to operate your permanent magnet synchronous motors with maximum energy efficiency. The overload of 200 %, the excellent starting torque and the extended speed control range also allow you to fully exploit the motor rating. For fast recovery of costs and the most efficient control processes.
Permanent magnet synchronous motors with external magnets for classic servo applications
Permanent magnet synchronous motors with external magnets (SPMSM) are ideal motors when you need high overloads and rapid acceleration, for example in classic servo applications. The elongated design also results in low mass inertia and can be optimally installed. However, one disadvantage of the system consisting of SPMSM and variable frequency drive is the costs associated with it, as expensive plug technology and high-quality encoders are often used.
Why choose permanent magnet ac motors?
Permanent magnet AC (PMAC) motors offer several advantages over other types of motors, including:
High Efficiency: PMAC motors are highly efficient due to the absence of rotor copper losses and reduced winding losses. They can achieve efficiencies of up to 97%, resulting in significant energy savings.
High Power Density: PMAC motors have a higher power density compared to other motor types, which means they can produce more power per unit of size and weight. This makes them ideal for applications where space is limited.
High Torque Density: PMAC motors have a high torque density, which means they can produce more torque per unit of size and weight. This makes them ideal for applications where high torque is required.
Reduced Maintenance: Since PMAC motors have no brushes, they require less maintenance and have a longer lifespan than other motor types.
Improved Control: PMAC motors have better speed and torque control compared to other motor types, making them ideal for applications where precise control is required.
Environmentally Friendly: PMAC motors are more environmentally friendly than other motor types since they use rare earth metals, which are easier to recycle and produce less waste compared to other motor types.
Overall, the advantages of PMAC motors make them an excellent choice for a wide range of applications, including electric vehicles, industrial machinery, and renewable energy systems.
