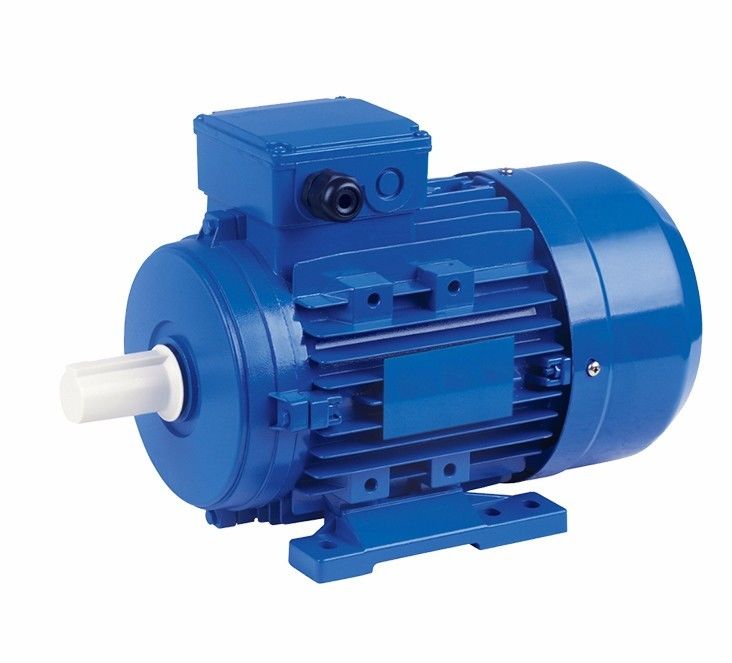

Blue Energy Efficient Lightweight AC Motor IP54 Brushless IPM Motor

Small And Lightweight

In special electromagnetic and structural design, the volume-to-weight ratio is reduced by 20%, the length of the whole machine is reduced by 10%, and the full rate of stator slots is increased to 90%.

Highly Integrated

The motor and the inverter are highly integrated, avoiding the external circuit connection between the motor and the inverter, and improving the reliability of the system products.

Energy Efficient

High-performance rare-earth permanent magnet material, special stator slot, and rotor structure make this motor efficient up to IE4 standard.

Custom Design

Customized design and manufacture, dedicated to special machines, reduce redundant functions and design margins and minimize costs.

Low Vibration And Noise

The motor is directly driven, the equipment noise and vibration are small, and the impact on the construction work environment is reduced.

Maintenance Free

No high-speed gear parts, no need to change gear lubricant regularly, and truly maintenance-free equipment.

What applications use PMSM motors?

‍

Industries that use PMSM motors include Metallurgical, Ceramic, Rubber, Petroleum, Textiles, and many others. PMSM motors can be designed to operate at synchronous speed from a supply of constant voltage and frequency as well as Variable Speed Drive (VSD) applications. Widely used in electric vehicles (EVs) due to high efficiency and power and torque densities, they are generally a superior choice in high torque applications such as mixers, grinders, pumps, fans, blowers, conveyors, and industrial applications where traditionally induction motors are found.

Permanent magnet synchronous motors with internal magnets: Maximum energy efficiency

The permanent magnet synchronous motor with internal magnets (IPMSM) is the ideal motor for traction applications where the maximum torque does not occur at maximum speed. This type of motor is used in applications that require high dynamics and overload capacity. And it is also the perfect choice if you want to operate fans or pumps in the IE4 and IE5 range. The high purchase costs are usually recouped through energy savings over the run time, provided that you operate it with the right variable frequency drive.

Our motor-mounted variable frequency drives use an integrated control strategy based on MTPA (Maximum Torque per Ampere). This allows you to operate your permanent magnet synchronous motors with maximum energy efficiency. The overload of 200 %, the excellent starting torque and the extended speed control range also allow you to fully exploit the motor rating. For fast recovery of costs and the most efficient control processes.

Permanent magnet synchronous motors with external magnets for classic servo applications

Permanent magnet synchronous motors with external magnets (SPMSM) are ideal motors when you need high overloads and rapid acceleration, for example in classic servo applications. The elongated design also results in low mass inertia and can be optimally installed. However, one disadvantage of the system consisting of SPMSM and variable frequency drive is the costs associated with it, as expensive plug technology and high-quality encoders are often used.

Differences Between The Permanent Magnet Motor And Asynchronous Motor

01. Rotor Structure

Asynchronous motor: The rotor consists of an iron core and a winding, mainly squirrel-cage and wire-wound rotors. A squirrel-cage rotor is cast with aluminum bars. The magnetic field of the aluminum bar cutting the stator drives the rotor.

PMSM Motor: The permanent magnets are embedded in the rotor magnetic poles, and are driven to rotate by the rotating magnetic field generated in the stator according to the principle of magnetic poles of the same phase attracting different repulsion.

02. Efficiency

Asynchronous motors: Need to absorb current from the grid excitation, resulting in a certain amount of energy loss, motor reactive current, and low power factor.

PMSM Motor: The magnetic field is provided by permanent magnets, the rotor does not need exciting current, and the motor efficiency is improved.

03. Volume And Weight

The use of high-performance permanent magnet materials makes the air gap magnetic field of permanent magnet synchronous motors larger than that of asynchronous motors. The size and weight are reduced compared to asynchronous motors. It will be one or two frame sizes lower than asynchronous motors.

04. Motor Starting Current

Asynchronous motor: It is directly started by power frequency electricity, and the starting current is large, which can reach 5 to 7 times the rated current, which has a great impact on the power grid in an instant. The large starting current causes the leakage resistance voltage drop of the stator winding to increase, and the starting torque is small so heavy-duty starting cannot be achieved. Even if the inverter is used, it can only start within the rated output current range.

PMSM Motor: It is driven by a dedicated controller, which lacks the rated output requirements of the reducer. The actual starting current is small, the current is gradually increased according to the load, and the starting torque is large.

05. Power Factor

Asynchronous motors have a low power factor, they must absorb a large amount of reactive current from the power grid, the large starting current of asynchronous motors will cause a short-term impact on the power grid, and long-term use will cause certain damage to the power grid equipment and transformers. It is necessary to add power compensation units and perform reactive power compensation to ensure the quality of the power grid and increase the cost of equipment use.

There is no induced current in the rotor of the permanent magnet synchronous motor, and the power factor of the motor is high, which improves the quality factor of the power grid and eliminates the need to install a compensator.

06. Maintenance

Asynchronous motor + reducer structure will generate vibration, heat, high failure rate, large lubricant consumption, and high manual maintenance cost; it will cause certain downtime losses.

The three-phase Permanent magnet synchronous motor drives the equipment directly. Because the reducer is eliminated, the motor output speed is low, mechanical noise is low, mechanical vibration is small, and the failure rate is low. The entire drive system is almost maintenance-free.
