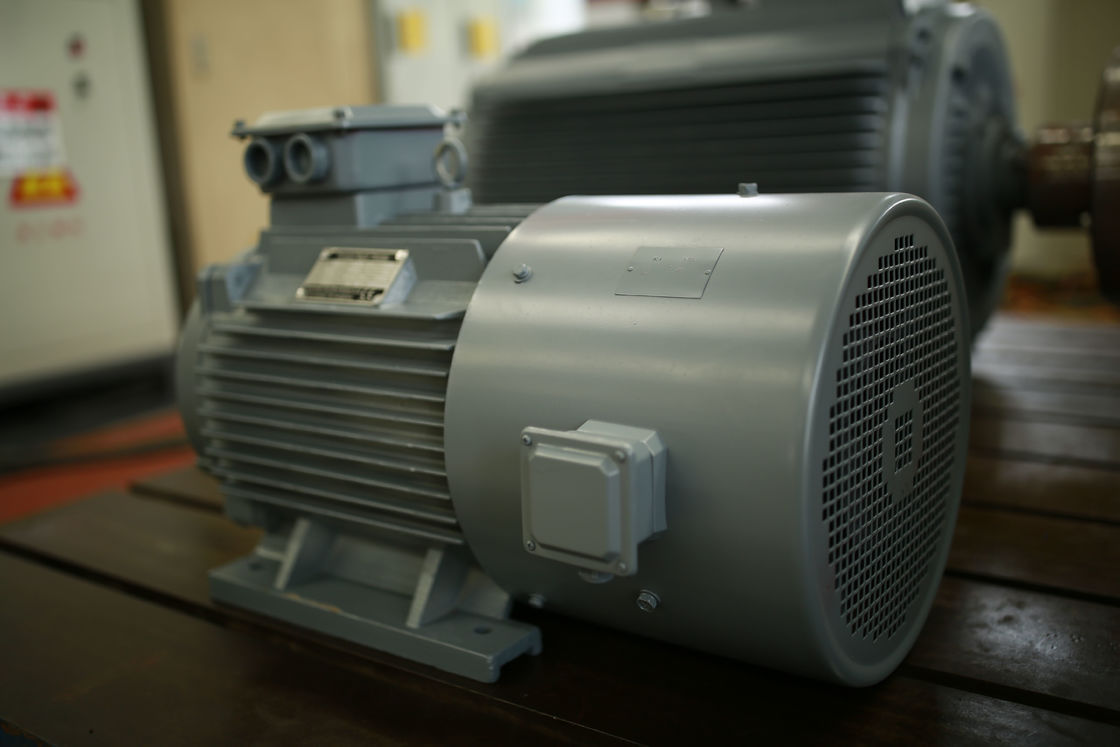

15kw 250rpm 230V PMG Permanent Magnet Generator For Hydro Turbine

15kw 250rpm 230V PMG Permanent Magnet Generator For Hydro Turbine

Product Drawing

Technical Parameter

Detailed Pictures

What is the permanent magnet generator?

A permanent magnet generator (PMG) is an electric generator that uses permanent magnets to create a magnetic field. The magnetic field is used to induce a voltage in a coil of wire that is connected to the generator. This voltage is then used to power electrical devices or to store energy in batteries.

The structure

The design of a PMG is relatively simple. It consists of a rotor, stator, and permanent magnets. The rotor is a rotating shaft that contains permanent magnets. The stator is a stationary component that surrounds the rotor and contains the coils of wire. When the rotor spins, the magnetic field created by the permanent magnets cuts across the coils of wire in the stator, inducing a voltage.

Working Principle

The permanent magnet generator uses the principle of electromagnetic induction in that the wire cuts the magnetic field line to induce an electric potential and converts the mechanical energy of the prime mover into electrical energy output. It consists of two parts, the stator, and the rotor. The stator is the armature that generates the electricity and the rotor is the magnetic pole. The stator is composed of an armature iron core, uniformly discharged three-phase winding, machine base, and end cover.

The rotor is usually a hidden pole type, which is composed of excitation winding, iron core and shaft, guard ring, center ring, and so on.

The excitation winding of the rotor is fed with DC current to generate a magnetic field close to the sinusoidal distribution (called the rotor magnetic field), and its effective excitation flux intersects with the stationary armature winding. When the rotor rotates, the rotor's magnetic field rotates together with it. Every time a revolution is made, the magnetic lines of force cut each phase winding of the stator in sequence, and a three-phase AC potential is induced in the three-phase stator winding.

When the pm generator is running with a symmetrical load, the three-phase armature current synthesizes to generate a rotating magnetic field with synchronous speed. The stator and rotor fields interact to generate braking torque. The mechanical torque input from the turbine overcomes the braking torque and works.

Features

① The generator has many poles, which improve the frequency and efficiency, saving the cost of rectifiers and inverters.

② Finite Element Analysis is used when designing the generator, compact structure. Low startup torque, solves the problem of small wind startup, improving wind energy utilization.

③ Leave out the gear increaser, improve the reliability and efficiency of the generator, and lower the amount of maintenance.

④ H class insulation, vacuum pressure impregnation.

⑤ Have many structures such as vertical axis, horizontal axis, internal rotor, external rotor, and plate type.

⑥ Strong rotors, the generator could achieve high speed.

⑦ Small size, lightweight, high energy density, suitable for special situations.

⑧ Run efficiency throughout the whole speed range, high efficiency.

⑨ Use imported high-speed oil-contained bearings, maintenance free, and high reliability.
