Product Details
Place of Origin: China
Brand Name: ENNENG
Certification: CE,UL
Model Number: PMM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: seaworthy packing
Delivery Time: 15-120 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year
Features: |
Totally Enclosed |
Name: |
Water Cooled Neodymium Magnet Motor |
Current: |
AC |
Power Range: |
5.5-3000kw |
Type: |
IPM |
Efficiency: |
IE4 IE5 |
Material: |
Rare Earth NdFeB |
Duty: |
S1 |
Phase: |
3 Phase |
Applications: |
Mixers, Grinders, Pumps, Fans, Blowers, Conveyors, And Industrial Applications |
Features: |
Totally Enclosed |
Name: |
Water Cooled Neodymium Magnet Motor |
Current: |
AC |
Power Range: |
5.5-3000kw |
Type: |
IPM |
Efficiency: |
IE4 IE5 |
Material: |
Rare Earth NdFeB |
Duty: |
S1 |
Phase: |
3 Phase |
Applications: |
Mixers, Grinders, Pumps, Fans, Blowers, Conveyors, And Industrial Applications |

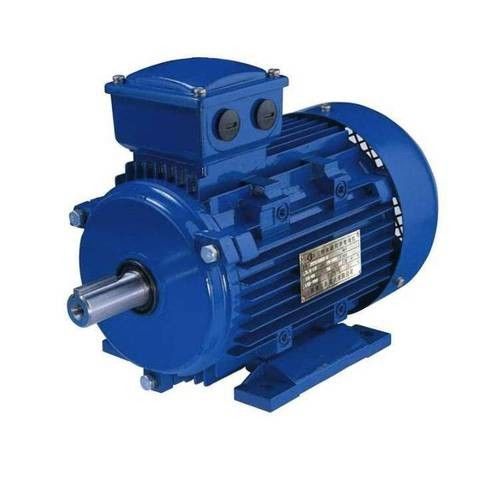

37kw 55kw 75kw Totally Enclosed Water Cooled Neodymium Magnet Motor
What Is The Permanent Magnet Synchronous Motor?
Permanent magnet motors are electrical machines that use permanent magnets instead of electromagnets to generate the magnetic field required for their operation.
Advantages:
1. Higher efficiency: Permanent magnet motors have higher efficiency than traditional motors because they have lower losses due to the absence of current in the rotor windings.
2. Better power density: Permanent magnet motors have a higher power density than traditional motors because they can generate a stronger magnetic field with a smaller amount of material.
3. Smaller size and weight: Due to their higher power density, permanent magnet motors can be designed to be smaller and lighter than traditional motors, making them ideal for applications where space and weight are a concern.
4. Lower maintenance: Permanent magnet motors have fewer moving parts than traditional motors, which means they require less maintenance and have a longer lifespan.
5. Better control: Permanent magnet motors have better control because they can respond faster to changes in load and speed, making them suitable for applications that require precise control.
Differences Between The Permanent Magnet Motor And Asynchronous Motor:
01. Rotor Structure
Asynchronous motor: The rotor consists of an iron core and a winding, mainly squirrel-cage and wire-wound rotors. A squirrel-cage rotor is cast with aluminum bars. The magnetic field of the aluminum bar cutting the stator drives the rotor.
PMSM Motor: The permanent magnets are embedded in the rotor magnetic poles, and are driven to rotate by the rotating magnetic field generated in the stator according to the principle of magnetic poles of the same phase attracting different repulsions.
02. Efficiency
Asynchronous motors: Need to absorb current from the grid excitation, resulting in a certain amount of energy loss, motor reactive current, and low power factor.
PMSM Motor: The magnetic field is provided by permanent magnets, the rotor does not need exciting current, and the motor efficiency is improved.
03. Volume And Weight
The use of high-performance permanent magnet materials makes the air gap magnetic field of permanent magnet synchronous motors larger than that of asynchronous motors. The size and weight are reduced compared to asynchronous motors. It will be one or two frame sizes lower than asynchronous motors.
04. Motor Starting Current
Asynchronous motor: It is directly started by power frequency electricity, and the starting current is large, which can reach 5 to 7 times the rated current, which has a great impact on the power grid in an instant. The large starting current causes the leakage resistance voltage drop of the stator winding to increase, and the starting torque is small so heavy-duty starting cannot be achieved. Even if the inverter is used, it can only start within the rated output current range.
PMSM Motor: It is driven by a dedicated controller, which lacks the rated output requirements of the reducer. The actual starting current is small, the current is gradually increased according to the load, and the starting torque is large.
05. Power Factor
Asynchronous motors have a low power factor, they must absorb a large amount of reactive current from the power grid, the large starting current of asynchronous motors will cause a short-term impact on the power grid, and long-term use will cause certain damage to the power grid equipment and transformers. It is necessary to add power compensation units and perform reactive power compensation to ensure the quality of the power grid and increase the cost of equipment use.
There is no induced current in the rotor of the permanent magnet synchronous motor, and the power factor of the motor is high, which improves the quality factor of the power grid and eliminates the need to install a compensator.
06. Maintenance
Asynchronous motor + reducer structure will generate vibration, heat, high failure rate, large lubricant consumption, and high manual maintenance cost; it will cause certain downtime losses.
The three-phase Permanent magnet synchronous motor drives the equipment directly. Because the reducer is eliminated, the motor output speed is low, mechanical noise is low, mechanical vibration is small, and the failure rate is low. The entire drive system is almost maintenance-free.
The three-phase Permanent magnet synchronous motor drives the equipment directly. Because the reducer is eliminated, the motor output speed is low, mechanical noise is low, mechanical vibration is small, and the failure rate is low. The entire drive system is almost maintenance-free.
The permanent magnet synchronous motor has the following characteristics:
In the general industrial sector, the replacement of low-voltage(380/660/1140V) high-efficiency asynchronous motors, system saves 5% to 30% energy, and the high-voltage(6kV/10kV) high-efficiency asynchronous motors, the system saves 2% to10%.
Why choose permanent magnet ac motors?
Permanent magnet AC (PMAC) motors offer several advantages over other types of motors, including:
High Efficiency: PMAC motors are highly efficient due to the absence of rotor copper losses and reduced winding losses. They can achieve efficiencies of up to 97%, resulting in significant energy savings.
High Power Density: PMAC motors have a higher power density compared to other motor types, which means they can produce more power per unit of size and weight. This makes them ideal for applications where space is limited.
High Torque Density: PMAC motors have a high torque density, which means they can produce more torque per unit of size and weight. This makes them ideal for applications where high torque is required.
Reduced Maintenance: Since PMAC motors have no brushes, they require less maintenance and have a longer lifespan than other motor types.
Improved Control: PMAC motors have better speed and torque control compared to other motor types, making them ideal for applications where precise control is required.
Environmentally Friendly: PMAC motors are more environmentally friendly than other motor types since they use rare earth metals, which are easier to recycle and produce less waste compared to other motor types.
Overall, the advantages of PMAC motors make them an excellent choice for a wide range of applications, including electric vehicles, industrial machinery, and renewable energy systems.
Application:
Permanent magnet synchronous motors can be combined with frequency converters to form the best open-loop step-less speed control system, which has been widely used for speed control transmission equipment in petrochemical, chemical fiber, textile, machinery, electronics, glass, rubber, packaging, printing, paper making, printing and dyeing, metallurgy and other industries.
induction motors. PM motors have variable-speed capability, however, so are equivalent replacements for an electronic pulse-width modulated variable frequency drive (VFD) controlling a new Premium Efficiency inverter-duty motor. When replacing constant-speed motors in variable flow applications, energy savings due to the variable-speed capability of the PMAC motor will greatly exceed the savings due to the increased efficiency of the motor itself. Permanent magnet motors provide improved efficiency over their entire operating range and meet or exceed the International Electrotechnical Commission (IEC) IE4 efficiency standards.
How to improve the efficiency of the motor?
To improve the efficiency of the motor, the essence is to reduce the loss of the motor. The loss of the motor is divided into mechanical loss and electromagnetic loss. For example, for an AC asynchronous motor, the current passes through the stator and rotor windings, which will produce copper loss and conductor loss, while the magnetic field in the iron. It will cause eddy currents to bring about hysteresis loss, high harmonics of the air magnetic field will generate stray losses on the load, and there will be wear losses during the rotation of bearings and fans.
To reduce the loss of the rotor, you can reduce the resistance of the rotor winding, use a relatively thick wire with low resistivity, or increase the cross-sectional area of the rotor slot. Of course, the material is very important. Conditional production of copper rotors will reduce losses by about 15%. The current asynchronous motors are basically aluminum rotors, so the efficiency is not so high.
Similarly, there is copper loss on the stator, which can increase the slot face of the stator, increase the full slot ratio of the stator slot, and shorten the end length of the stator winding. If a permanent magnet is used to replace the stator winding, there is no need to pass current. Of course, the efficiency can be obviously improved, which is the fundamental reason why the synchronous motor is more efficient than the asynchronous motor.
For the iron loss of the motor, high-quality silicon steel sheets can be used to reduce the loss of the hysteresis, or the length of the iron core can be lengthened, which can reduce the magnetic flux density, and can also increase the insulating coating. In addition, the heat treatment process is also critical.
The ventilation performance of the motor is more important. When the temperature is high, the loss will of course be large. The corresponding cooling structure or additional cooling method can be used to reduce friction loss.
High-order harmonics will produce stray losses in the winding and iron core, which can improve the stator winding and reduce the generation of high-order harmonics. Insulation treatment can also be performed on the surface of the rotor slot, and magnetic slot mud can be used to reduce the magnetic slot effect.
