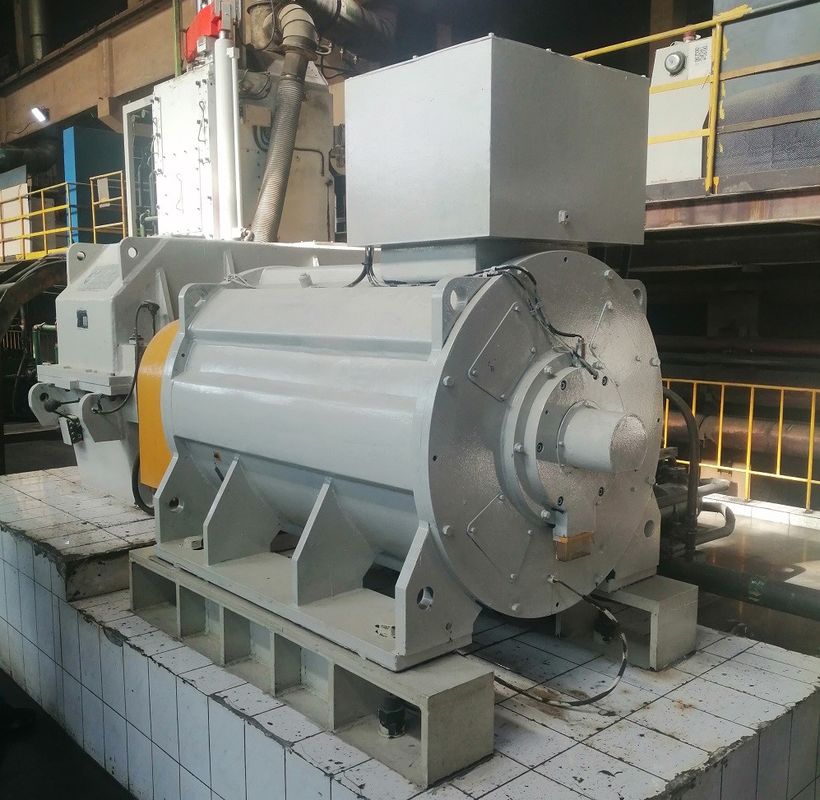

1250kw 1000rpm 690v 50hz Permanent Magnet Motor For Internal Mixer

The permanent magnet synchronous motor has the following characteristics:

• Rated efficiency is 2% to 5% higher than normal asynchronous motors;
• The efficiency rises rapidly with the increase of the load. When the load changes within the range of 25% to 120%, it maintains high efficiency. The high-efficiency operating range is much higher than that of ordinary asynchronous motors. Light-load, variable-load, and full-load all have significant energy-saving effects;
• Power factors up to 0.95 and above, no reactive compensation required;
• The power factor is greatly improved. Compared with asynchronous motors, the running current is reduced by more than 10%. Due to the decrease in operating current and system losses, energy-saving effects of about 1% can be achieved.
• Low-temperature rise, high power density: 20K lower than three-phase asynchronous motor temperature rise, design temperature rise is the same and can be made into a smaller volume, saving more effective materials;
• High starting torque and high overload capacity: according to requirements, it can be designed with high starting torque (3-5 times) and high overload capacity;
• The variable frequency speed control system is used, which is better in dynamic response and better than that of asynchronous motors.
• The installation dimensions are the same as the asynchronous motors currently widely used, and the design and selection are very convenient.
• Due to the increase in power factor, the visual power of the power supply system transformer is greatly reduced, which improves the power supply capacity of the transformer, and can also greatly reduce the cost of the system cable (new project);
• When the new project is built, all the drive systems use permanent magnet synchronous motors, the project investment is basically the same as the use of asynchronous motors, and the project can continue to obtain energy-saving benefits after the project is put into operation;

In the general industrial sector, the replacement of low-voltage(380/660/1140V) high-efficiency asynchronous motors, system saves 5% to 30% energy, and the high-voltage(6kV/10kV) high-efficiency asynchronous motors, system saves 2% to10%.

Why choose permanent magnet AC motors?

Permanent magnet AC (PMAC) motors offer several advantages over other types of motors, including:

High Efficiency: PMAC motors are highly efficient due to the absence of rotor copper losses and reduced winding losses. They can achieve efficiencies of up to 97%, resulting in significant energy savings.

High Power Density: PMAC motors have a higher power density compared to other motor types, which means they can produce more power per unit of size and weight. This makes them ideal for applications where space is limited.

High Torque Density: PMAC motors have a high torque density, which means they can produce more torque per unit of size and weight. This makes them ideal for applications where high torque is required.

Reduced Maintenance: Since PMAC motors have no brushes, they require less maintenance and have a longer lifespan than other motor types.

Improved Control: PMAC motors have better speed and torque control compared to other motor types, making them ideal for applications where precise control is required.

Environmentally Friendly: PMAC motors are more environmentally friendly than other motor types since they use rare earth metals, which are easier to recycle and produce less waste compared to other motor types.

Overall, the advantages of PMAC motors make them an excellent choice for a wide range of applications, including electric vehicles, industrial machinery, and renewable energy systems.

Application:

Permanent magnet synchronous motors can be combined with frequency converters to form the best open-loop step-less speed control system, which has been widely used for speed control transmission equipment in petrochemical, chemical fiber, textile, machinery, electronics, glass, rubber, packaging, printing, paper making, printing and dyeing, metallurgy and other industries.

 induction motors. PM motors have variable-speed capability, however, so are equivalent replacements for an electronic pulse-width modulated variable frequency drive (VFD) controlling a new Premium Efficiency inverter-duty motor. When replacing constant-speed motors in variable flow applications, energy savings due to the variable-speed capability of the PMAC motor will greatly exceed the savings due to the increased efficiency of the motor itself. Permanent magnet motors provide improved efficiency over their entire operating range and meet or exceed the International Electrotechnical Commission (IEC) IE4 efficiency standards.

How to improve the efficiency of the motor?

To improve the efficiency of the motor, the essence is to reduce the loss of the motor. The loss of the motor is divided into mechanical loss and electromagnetic loss. For example, for an AC asynchronous motor, the current passes through the stator and rotor windings, which will produce copper loss and conductor loss, while the magnetic field in the iron. It will cause eddy currents to bring about hysteresis loss, high harmonics of the air magnetic field will generate stray losses on the load, and there will be wear losses during the rotation of bearings and fans.

To reduce the loss of the rotor, you can reduce the resistance of the rotor winding, use a relatively thick wire with low resistivity, or increase the cross-sectional area of the rotor slot. Of course, the material is very important. Conditional production of copper rotors will reduce losses by about 15%. The current asynchronous motors are basically aluminum rotors, so the efficiency is not so high.

Similarly, there is copper loss on the stator, which can increase the slot face of the stator, increase the full slot ratio of the stator slot, and shorten the end length of the stator winding. If a permanent magnet is used to replace the stator winding, there is no need to pass current. Of course, the efficiency can be obviously improved, which is the fundamental reason why the synchronous motor is more efficient than the asynchronous motor.

For the iron loss of the motor, high-quality silicon steel sheets can be used to reduce the loss of the hysteresis or the length of the iron core can be lengthened, which can reduce the magnetic flux density, and can also increase the insulating coating. In addition, the heat treatment process is also critical.

The ventilation performance of the motor is more important. When the temperature is high, the loss will of course be large. The corresponding cooling structure or additional cooling method can be used to reduce friction loss.

High-order harmonics will produce stray losses in the winding and iron core, which can improve the stator winding and reduce the generation of high-order harmonics. Insulation treatment can also be performed on the surface of the rotor slot, and magnetic slot mud can be used to reduce the magnetic slot effect.
