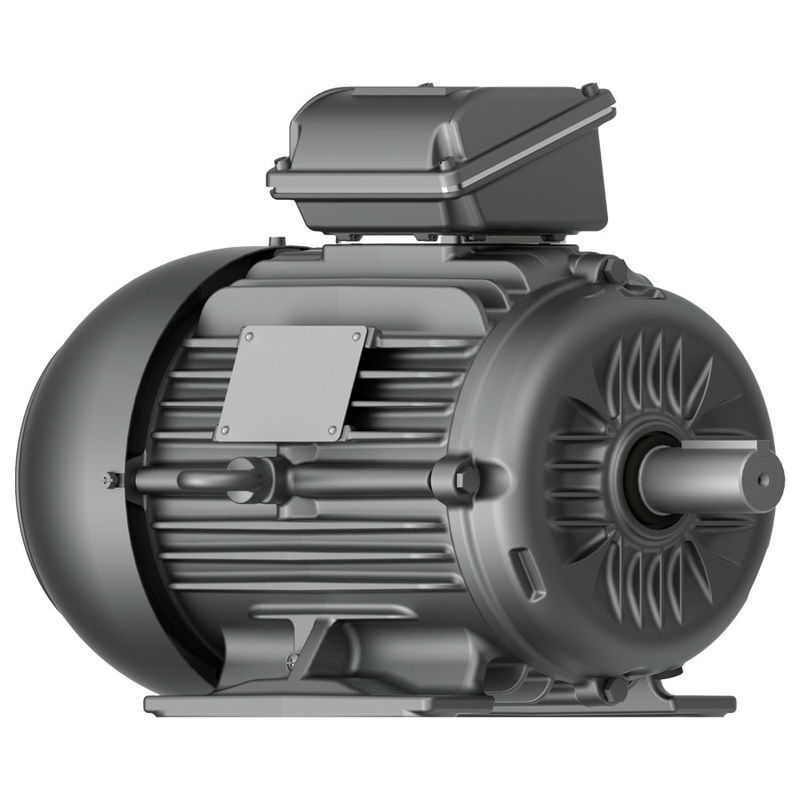

High Power Factor Permanent Magnet Electric Motor For Aerator

What applications use PMSM motors?

‍

Industries that use PMSM motors include Metallurgical, Ceramic, Rubber, Petroleum, Textiles, and many others. PMSM motors can be designed to operate at synchronous speed from a supply of constant voltage and frequency as well as Variable Speed Drive (VSD) applications. Due to high efficiency and power and torque densities, they are generally a superior choice in high torque applications such as mixers, grinders, pumps, fans, blowers, conveyors, and industrial applications where traditionally induction motors are found.

Permanent magnet synchronous motors with internal magnets: Maximum energy efficiency

The permanent magnet synchronous motor with internal magnets (IPMSM) is the ideal motor for traction applications where the maximum torque does not occur at maximum speed. This type of motor is used in applications that require high dynamics and overload capacity. And it is also the perfect choice if you want to operate fans or pumps in the IE4 and IE5 range. The high purchase costs are usually recouped through energy savings over the run time, provided that you operate it with the right variable frequency drive.

Our motor-mounted variable frequency drives use an integrated control strategy based on MTPA (Maximum Torque per Ampere). This allows you to operate your permanent magnet synchronous motors with maximum energy efficiency. The overload of 200 %, the excellent starting torque, and the extended speed control range also allow you to fully exploit the motor rating. For fast recovery of costs and the most efficient control processes.

Permanent magnet synchronous motors with external magnets for classic servo applications

Permanent magnet synchronous motors with external magnets (SPMSM) are ideal motors when you need high overloads and rapid acceleration, for example in classic servo applications. The elongated design also results in low mass inertia and can be optimally installed. However, one disadvantage of the system consisting of SPMSM and variable frequency drive is the costs associated with it, as expensive plug technology and high-quality encoders are often used.

Advantages Of Rare-earth Permanent Magnet Motors

High efficiency: The efficiency curve of the asynchronous motor generally falls faster under 60% of the rated load, and the efficiency is very low at light load. The efficiency curve of the rare earth permanent magnet motor is high and flat, and it is in the high-efficiency area at 20%~120% of the rated load.

High power factor: The measured value of the power factor of the rare earth permanent magnet synchronous motor is close to the limit value of 1.0. The power factor curve is as high and flat as the efficiency curve. The power factor is high. Low-voltage reactive power compensation is not required and the power distribution system capacity is fully utilized.

Stator current is small: The rotor has no excitation current, the reactive power is reduced, and the stator current is significantly reduced. Compared with the asynchronous motor of the same capacity, the stator current value can be reduced by 30% to 50%. At the same time, because the stator current is greatly reduced, the motor temperature rise is reduced, and the bearing grease and bearing life are extended.

High out-of-step torque and pull-in torque: Rare earth permanent magnet synchronous motors have higher out-of-step torque and pull-in torque, which makes the motor have higher load capacity and can be smoothly pulled into synchronization.

Disadvantages Of Rare-earth Permanent Magnet Motors

High cost: Compared with the asynchronous motor of the same specification, the air gap between the stator and the rotor is smaller, and the processing accuracy of each component is high; the rotor structure is more complicated and the price of rare earth magnetic steel material is high; therefore, the motor manufacturing cost is high, which is common for asynchronous motors About 2 times.

Large impact at full power start: When starting at full pressure, the synchronous speed can be drawn in a very short time. The mechanical shock is large. The starting current is more than 10 times the rated current. The impact on the power supply system is large, requiring a large capacity of the power supply system.

Rare-earth magnet steel is easy to demagnetize: When the permanent magnet material is subjected to vibration, high temperature, and overload current, its magnetic permeability may decrease, or the demagnetization phenomenon occurs, which reduces the performance of the permanent magnet motor.

Surface-mounted PMSM

In this construction, the magnet is mounted on the surface of the rotor. It is suited for high-speed applications, as it is not robust. It provides a uniform air gap because the permeability of the permanent magnet and the air gap is the same. No reluctance torque, high dynamic performance, and suitable for high-speed devices like robotics and tool drives.

Buried PMSM or Interior PMSM

In this type of construction, the permanent magnet is embedded into the rotor as shown in the figure below. It is suitable for high-speed applications and is robust. Reluctance torque is due to the saliency of the motor.
