Rare Earth NdFeB Synchronous Permanent Magnet Motor Three Phase

Three Phase Synchronous Permanent Magnet Motor

Permanent Magnet Motor Product Parameters:

Frame size: H112 to H450

Rated speed:1500rpm,3000rpm, or according to customer requirements

Protection grade: lP55 IP56 IP65

Insulation class: F, H

Thermal protection device: PTC, PT100

Bearing Brand: FAG, SKF

Power supply voltage:220v,380v,415v,660v,6kv,10 kv or according to customer requirement

Installation: B3,B5,B35 V1,etc

Service factor:1.15,1.2,1.25,1.3 or according to customer requirements

Cooling method: IC411, IC416

Application altitude: 1000m or according to customer requirements

Control mode: inverter open loop vector control

Permanent Magnet Motor Product Description:

This series of motors is specially designed to consider the special working conditions of the compressor, with high efficiency, low noise, strong overload capacity, long bearing life, and so on. The performance and installation size of this series of motors conforms to the lEC60034 standard, DIN42673 standard, GB755 standard, and related professional and technical standards. And the company has passed IS09001 international quality system certification many times.

From the order, development, manufacturing, inspection, sales, and service process in accordance with the requirements of IS09001 quality system control. This series of motors consider that the cable of the motor is directly connected to the electric control box of the compressor. According to the user's requirements, the motor can be equipped with extended lead wire and screw sleeve; This series of motors features a rotor with a permanent magnet. This technology offers significant advantages to the motor, such as higher efficiency, power factor, and higher power density.

They are driven by frequency converters that provide constant torque over a wide range of speed changes and operate even at low speeds with higher efficiency than induction motors. In addition to the energy efficiency of IE4, the motors can better achieve the efficiency of IE5 on the market today.

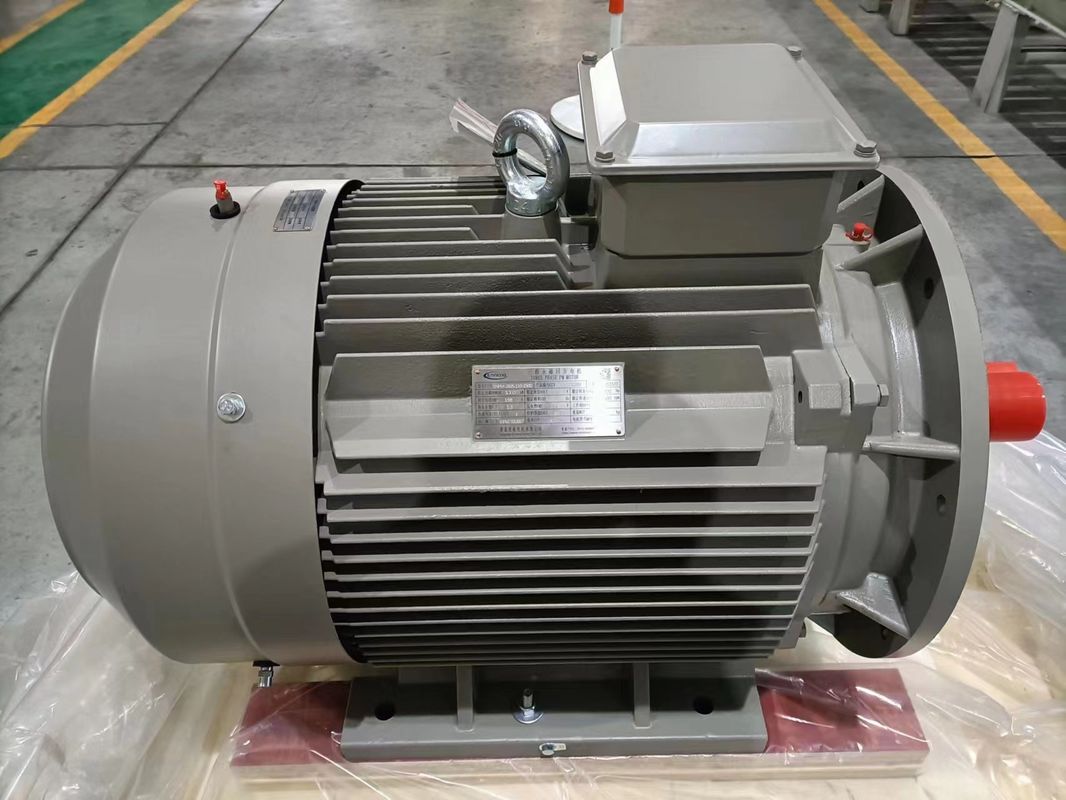

Detailed pictures
