Product Details
Place of Origin: China
Brand Name: ENNENG
Certification: CE,UL
Model Number: PMM
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 500-5000/set
Packaging Details: seaworthy packing
Delivery Time: 15-120 days
Payment Terms: L/C, T/T
Supply Ability: 20000 sets/year
Name: |
Three Phase Oil Cooled Permanent Magnet Motor |
Material: |
Rare Earth NdFeB |
Current: |
AC |
Poles: |
2,4,6,8,10 |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |
Cooling: |
Water Cooled |
Installation: |
IMB3, IMB5, IMB35 |
Application: |
Pumps, Compressors, Fans, And Machine Tools. |
Name: |
Three Phase Oil Cooled Permanent Magnet Motor |
Material: |
Rare Earth NdFeB |
Current: |
AC |
Poles: |
2,4,6,8,10 |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |
Cooling: |
Water Cooled |
Installation: |
IMB3, IMB5, IMB35 |
Application: |
Pumps, Compressors, Fans, And Machine Tools. |

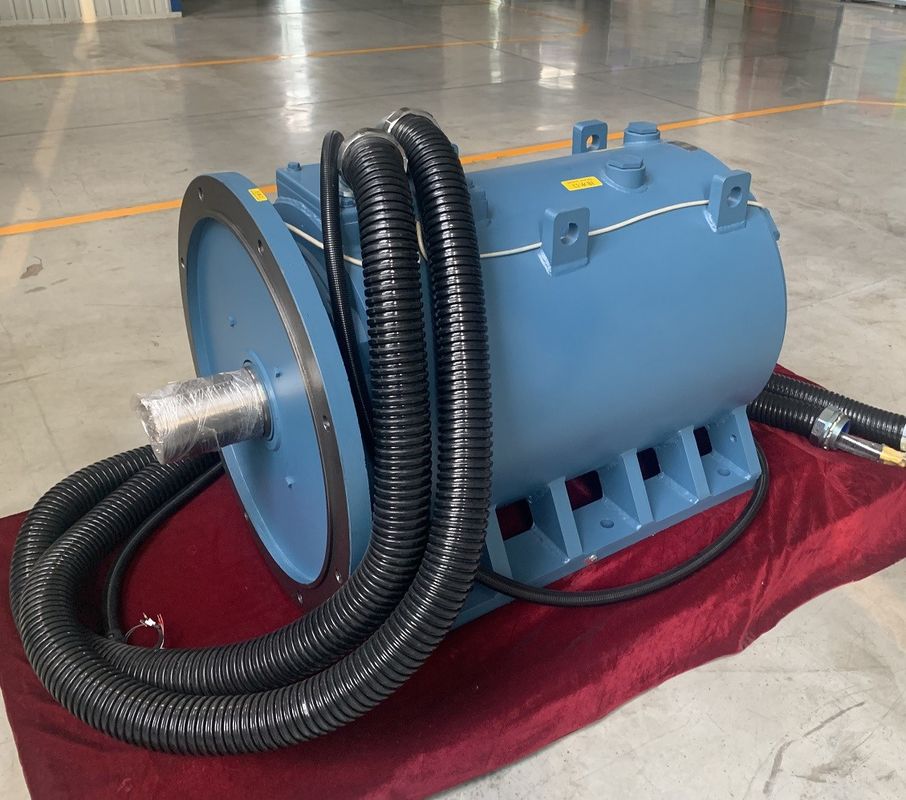

Three Phase Oil Cooled Permanent Magnet Motor
| Energy efficiency standards | comply with GB30253-1 grade | Work mode | S1 |
| Installation dimensions | comply with IEC standard | Control mode | variable frequency vector control |
| Power range | 7.5 〜160kW | Governing range | constant torque: 0〜3000r/min weak field: 3000 〜3600r/min |
| Cooling way | IC411 (fan cooling) | Governing range | constant torque: 0〜1500r/min weak field: 1500 〜1800r/min |
| Power range | 7.5 〜250kW | Optional parts | Encoder, spiral transformer, PTC, PT100 |
| Cooling way | IC416 (independent axial flow fan) | Wiring type | junction box (aviation plug can be customized as per requirement) |
| Insulation class | F | Service factor | Standard 1, 2 (customized as per requirement) |
| Protection grade | IP54 (IP23 customizable) | installation | IMB3 IMB5 IMB35 |
What Is The Permanent Magnet Synchronous Motor?
The PERMANENT MAGNET SYNCHRONOUS MOTOR is mainly composed of the stator, rotor, chassis, front-rear cover, bearings, etc. The structure of the stator is basically the same as that of ordinary asynchronous motors, and the main difference between the permanent magnet synchronous motor and other kinds of motors is its rotor.
The permanent magnet material with pre-magnetized (magnetic charged) magnetic on the surface or inside the permanent magnet of the motor, provides the necessary air gap magnetic field for the motor. This rotor structure can effectively reduce the motor volume, reduce loss and improve efficiency.
Analysis of the principle of the technical advantages of permanent magnet motor
The principle of a permanent magnet synchronous motor is as follows: In the motor's stator winding into the three-phase current, after the pass-in current, it will form a rotating magnetic field for the motor's stator winding. Because the rotor is installed with the permanent magnet, the permanent magnet's magnetic pole is fixed, according to the principle of magnetic poles of the same phase attracting different repulsion, the rotating magnetic field generated in the stator will drive the rotor to rotate, The rotation speed of the rotor is equal to the speed of the rotating pole produced in the stator.
Due to the use of permanent magnets to provide magnetic fields, the rotor process is mature, reliable, and flexible in size, and the design capacity can be as small as tens of watts, up to megawatts. At the same time, by increasing or decreasing the number of pairs of rotor permanent magnets, it is easier to change the number of poles of the motor, which makes the speed range of permanent magnet synchronous motors wider. With multi-pole permanent magnet rotors, the rated speed can be as low as a single digit, which is difficult to achieve by ordinary asynchronous motors.
Especially in the low-speed high-power application environment, the permanent magnet synchronous motor can be directly driven by a multi-pole design at low speed, compared with an ordinary motor plus reducer, the advantages of a permanent magnet synchronous motor can be highlighted.
Permanent magnet AC (PMAC) motors have a wide range of applications including:
Due to the superiority of rare earth permanent magnet motors, their applications are becoming more and more extensive. The main application areas are as follows:
Focus on the high efficiency and energy saving of rare earth permanent magnet motors. The main application objects are large power consumers, such as rare earth permanent magnet synchronous motors for textile and chemical fiber industries, rare earth permanent magnet synchronous motors for various mining and transportation machinery used in oil fields and coal mines, and rare earth permanent magnet synchronous motors for driving various pumps and fans.
Permanent magnet synchronous motors with internal magnets: Maximum energy efficiency
The permanent magnet synchronous motor with internal magnets (IPMSM) is the ideal motor for traction applications where the maximum torque does not occur at maximum speed. This type of motor is used in applications that require high dynamics and overload capacity. And it is also the perfect choice if you want to operate fans or pumps in the IE4 and IE5 range. The high purchase costs are usually recouped through energy savings over the run time, provided that you operate it with the right variable frequency drive.
Our motor-mounted variable frequency drives use an integrated control strategy based on MTPA (Maximum Torque per Ampere). This allows you to operate your permanent magnet synchronous motors with maximum energy efficiency. The overload of 200 %, the excellent starting torque, and the extended speed control range also allow you to fully exploit the motor rating. For fast recovery of costs and the most efficient control processes.
Permanent magnet synchronous motors with external magnets for classic servo applications
Permanent magnet synchronous motors with external magnets (SPMSM) are ideal motors when you need high overloads and rapid acceleration, for example in classic servo applications. The elongated design also results in low mass inertia and can be optimally installed. However, one disadvantage of the system consisting of SPMSM and variable frequency drive is the costs associated with it, as expensive plug technology and high-quality encoders are often used.
What factors need to be considered when choosing the motor for air compressor?
When buying a permanent magnet motor for an air compressor, there are several factors that need to be considered. These include the motor’s power rating, speed, efficiency, and durability. You should also consider the type of air compressor you have and the specific application for which you will be using the motor.
For example, if you have a small air compressor that is used for light-duty applications, you may not need a high-powered motor. However, if you have a large air compressor that is used for heavy-duty applications, you will need a motor with a higher power rating and greater durability.
In addition to these factors, you should also consider the cost of the motor and its overall value for money. You may also want to look for motors that are energy-efficient and environmentally friendly.
