Name: |
3 Phase Permanent Magnet Electric Motor 220v 50 Hz |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Installation: |
IMB3 IMB5 IMB35 |
Phase: |
3 Phase |
Poles: |
2,4,6,8,10 |
Power Range: |
5.5-3000kw |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |
Frame Size: |
From H112 To H450 |
Control Mode: |
Invertor Open Loop Vector Control |
Name: |
3 Phase Permanent Magnet Electric Motor 220v 50 Hz |
Current: |
AC |
Material: |
Rare Earth NdFeB |
Installation: |
IMB3 IMB5 IMB35 |
Phase: |
3 Phase |
Poles: |
2,4,6,8,10 |
Power Range: |
5.5-3000kw |
Voltage: |
380v, 660v, 1140v, 3300v, 6kv, 10kv |
Frame Size: |
From H112 To H450 |
Control Mode: |
Invertor Open Loop Vector Control |
Product Parameters:
Model | Rated power(KW) | Rated voltage(V) | Rated current(A) | Rated speed(r/min) | Efficiency(%) | Power factor | Rated frequency(Hz) | Service factor |
TYC7.5-3000-Z132S6 | 7.5 | 380 | 12.8 | 3000 | 93.0 | 0.96 | 150 | 1.2 |
TYC11-3000-Z132S6 | 11 | 18.5 | 94.0 | |||||
TYC15-3000-Z132S6 | 15 | 25.2 | 94.3 | |||||
TYC18.5-3000-Z160M6 | 18.5 | 31.0 | 94.4 | |||||
TYC22-3000-Z160M6 | 22 | 36.8 | 94.6 | |||||
TYC30-3000-Z160L6 | 30 | 50.0 | 95.0 | |||||
TYC37-3000-Z160L6 | 37 | 61.3 | 95.5 | |||||
TYC45-3000-Z180M8 | 45 | 74.5 | 95.6 | 200 | ||||
TYC55-3000-Z180M8 | 55 | 90.9 | 95.8 | |||||
TYC75-3000-Z225M8 | 75 | 123 | 96.2 | |||||
TYC90-3000-Z225M8 | 90 | 148 | 96.5 | |||||
TYC110-3000-Z225L8 | 110 | 180 | 96.8 | |||||
TYC132-3000-Z225L8 | 132 | 215 | 97.0 | |||||
TYC160-3000-Z225L8 | 160 | 261 | 97.0 | |||||
TYC185-3000-Z250M8 | 185 | 301 | 97.0 | |||||
TYC-200-3000-Z250M8 | 200 | 326 | 97.0 | |||||
TYC-200-3000-Z250L8 | 220 | 359 | 97.0 | |||||
TYC-200-3000-Z250L8 | 250 | 408 | 97.0 |
Frame size | 132 | 160 | 180 | 200 | 225 | 250M/L | 280M/L | ||||
Mechanical Properties | |||||||||||
Frame/End shield /Terminal boxes |
Material | Cast Iron | |||||||||
Mounting | B3/B35 | ||||||||||
IP Grade | IP23 | ||||||||||
Cooling Method | IC01(ODP) | ||||||||||
Earth | Inside the wiring cover and the machine base | ||||||||||
Bearing | Dust cover/clearance | ZZ/C3 | /C3 | ||||||||
Bearing fix | DE fix, NDE with Wave spring washer | ||||||||||
DE fix bearings |
3000rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6314/6318 | 6314/6318 | |||
1500rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6318/6318 | 6318/6318 | ||||
NDE fix bearings |
3000rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6314/6316 | 6314/6316 | |||
1500rpm | 6308 | 6309 | 6312 | 6312 | 6313 | 6316/6316 | 6316/6316 | ||||
Lubrication |
Material | ESSO UNIREX N2 | |||||||||
Oil pipe | / | End shield oiling device | pipe | ||||||||
plug | With rubber blind cover for transportation and storage | ||||||||||
Shaft | Material | Steel45# | |||||||||
B type | |||||||||||
vibration limit (mm/s) |
1.6 | 2.2 | |||||||||
Balance | 1/2 key G2.5 grade | ||||||||||
Nameplate |
Material |
Aluminum alloy | |||||||||
Electrical performance | |||||||||||
Voltage | 380/400V(or440/460V)three terminals | ||||||||||
Winding |
Material | high purity copper | |||||||||
Dipping method |
VPI and drying | ||||||||||
Insulation grade | 155(F) | ||||||||||
Service Factor | 1.0/1.2/1.3 | ||||||||||
stator and rotor lamination |
silicon steel | ||||||||||
permanent magnet | NdFeB |
Product Description:

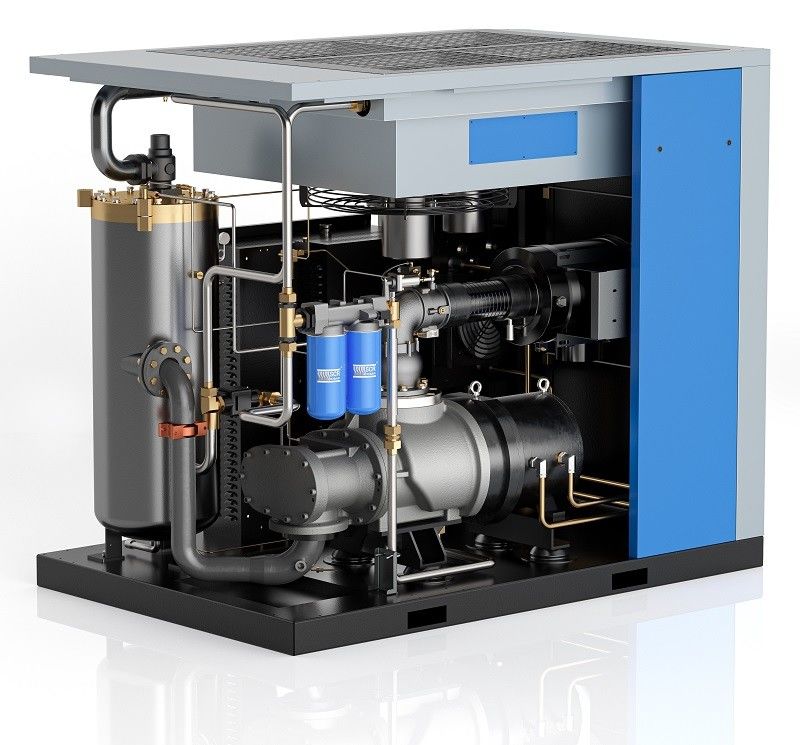

The TYC series ultra-ultra-high-efficiency rare earth permanent magnet synchronous motor that exceeds the IE4 efficiency standard is the latest special motor for compressors developed by our company. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates without encoder vector control, and has a magnetic steel structure. , has the advantages of high efficiency, reliable operation, and good installation interchangeability.
B3/B35 size | Universal size | ||||||||||||||
Frame size | A | AA | AB | B | BB | HA | H | K | C | AC | AD | BS | KK | L | |
3000rpm | 1500rpm | ||||||||||||||
132S | 216 | 63 | 270 | 140 | 190 | 20 | 132 | 12 | 89 | 275 | 213 | 0 | M33 | 508 | |
132M | 178 | 230 | 546 | ||||||||||||
160M | 254 | 73 | 320 | 210 | 274 | 20 | 160 | 15 | 108 | 330 | 260 | 65 | M33 | 659 | |
160L | 254 | 318 | 87 | 714 | |||||||||||
180M | 279 | 73 | 355 | 241 | 315 | 22 | 180 | 15 | 121 | 380 | 280 | 67 | M48 | 738 | |
180L | 279 | 355 | 86 | 778 | |||||||||||
200L | 318 | 73 | 395 | 305 | 375 | 25 | 200 | 19 | 133 | 400 | 305 | 86 | M48 | 820 | |
225S | 356 | 83 | 435 | 286 | 375 | 28 | 225 | 19 | 149 | 470 | 335 | 87 | M48 | 820 | |
225M | 311 | 400 | 100 | 845 | |||||||||||
280S | 457 | 93 | 550 | 368 | 490 | 35 | 280 | 24 | 190 | 547 | 400 | 158 | M64 | 985 | |
280M | 419 | 540 | 184 | 1035 | |||||||||||
315S | 508 | 120 | 635 | 406 | 575 | 45 | 315 | 28 | 216 | 645 | 530 | 162 | M75 | 1185 | 1215 |
315M | 457 | 685 | 188 | 1295 | 1325 |
Universal size | B35/B5/V1size | ||||||||||||||||
Frame size | D | E/DE | F | G | GD | N | M | P | S | T | R | LA | |||||
3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
3000 rpm |
1500 rpm |
||||||||
132S | 38k6 | 80/70 | 10 | 33 | 8 | 230j6 | 265 | 300 | 15 | 4 | 0 | 14 | |||||
132M | |||||||||||||||||
160M | 42k6 | 110/80 | 12 | 37 | 8 | 250j6 | 300 | 350 | 19 | 5 | 0 | 15 | |||||
160L | |||||||||||||||||
180M | 48k6 | 110/80 | 14 | 42.5 | 9 | 250j6 | 300 | 350 | 19 | 5 | 0 | 15 | |||||
180L | |||||||||||||||||
200L | 55m6 | 110/80 | 16 | 49 | 10 | 300j6 | 350 | 400 | 19 | 5 | 0 | 17 | |||||
225S | 60m6 | 140/100 | 16 | 18 | 49 | 53 | 10 | 11 | 350j6 | 400 | 450 | 19 | 5 | 0 | 20 | ||
225M | |||||||||||||||||
280S | 65m6 | 75m6 | 140/100 | 18 | 20 | 58 | 67.5 | 11 | 12 | 450j6 | 500 | 550 | 19 | 5 | 0 | 22 | |
280M | |||||||||||||||||
315S | 65m6 | 80m6 | 140/100 | 170/140 | 18 | 22 | 58 | 71 | 11 | 14 | 550 | 600 | 660 | 24 | 6 | 0 | 25 |
315M |
This series of motors is specially designed to consider the special working conditions of the compressor, with high efficiency, low noise, strong overload capacity, long bearing life, and so on. The temperature rise under the full load service coefficient is assessed by grade B ( T80K). The performance and installation size of this series of motors conforms to the lEC60034 standard.DIN42673 standard, GB755 standard, and related professional and technical standards. And the company has passed IS09001 international quality system certification many times. From the order, development, manufacturing, inspection, sales, and service process in accordance with the requirements of IS09001 quality system control. This series of motors consider that the cable of the motor is directly connected to the electric control box of the compressor. According to the user's requirements, the motor can be equipped with extended lead wire and screw sleeve; This series of motors features a rotor with a permanent magnet, This technology offers significant advantages to the motor, such as higher efficiency, power factor, and higher power density. They are driven by frequency converters that provide constant torque over a wide range of speed changes and operate even at low speeds, with higher efficiency than induction motors. ln addition to the energy efficiency of IE4, the motors can better achieve the efficiency of lE5 on the market today.
